Keep Your Cabinets Looking Great

Latitude Cabinets are designed to stand the tests of time, and we make them easy maintain too. Simple adjustments and removing everyday dirt, grime, and grease will enhance the appearance and life of your cabinets.

- DO NOT USE cleaners with petroleum, ammonia, alcohol, or abrasives. -

Solid Wood Care
The beauty of wood increases over time and,  depending on the wood species, color will evolve through the natural aging process. Clean with a soft dampened cloth using a mild soap solution and warm water, then dry with a clean, soft cloth.

Laminate Care
Clean laminate surfaces with a soft dampened cloth using mild soap and water, then dry with a clean, soft cloth. Do not “dry wipe” laminate surfaces, or use paper towels, especially on high-gloss finishes, as it can scratch the surface.

Touch-Up Kit
Each Latitude Cabinet order ships with a touch-up kit that includes color matched fill sticks and a marker to repair minor scratches and pin holes.
Color match caulking is also available at Color Rite.


Door Adjustments

For best results, your built-to-order frameless cabinets may require minor adjustments to align the reveals, or gaps, between adjacent doors and drawers. These minor adjustments are the responsibility of the home owner/installer and can be easily done using a Phillips head screwdriver.
- NOTE:  Adjust doors & drawers before drilling for handles or knobs. -

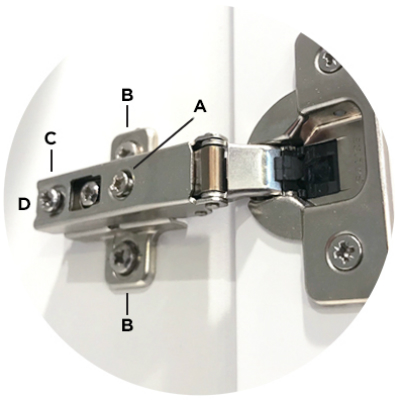

A. Left & Right Door Adjustments
Turn screw (A) for horizontal door adjustments.
Proper door alignment requires adjusting upper and lower hinges (middle hinge on tall cabinets).
WATCH

B. Up & Down Door Adjustments
Loosen both screws (B) on each hinge to allow for vertical door adjustment. Support the weight of the door with one hand while lifting or lowering the door into alignment with the other, then tighten all screws when adjustment is complete.
WATCH

C. In & Out Door Adjustments
Loosen screw (C) to manually move the door in or out. Use this to adjust the door so it evenly contacts the cabinet box at top and bottom.
Tighten screw when adjustment is complete.
WATCH

D. Remove & Replace Door
Easily remove the door by pressing the quick release button on the back of the hinge. To replace the door, align the hinge over the hinge plate and press firmly until it locks into place.
NOTE: This process does not interfere with hinge adjustments.
WATCH

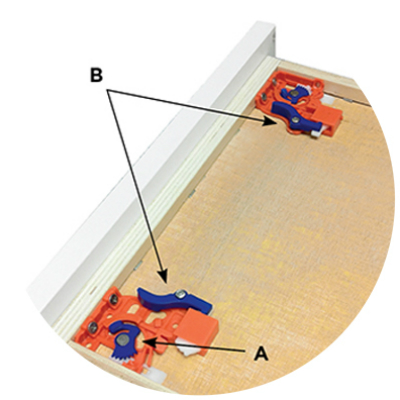

Access Drawer Adjustments (standard)

A. Adjust Drawer Face Alignment
Rotate adjustment tabs to raise or lower drawer box slightly on each end.

B. Remove Drawer
Pull drawer open. On drawer box bottom, squeeze release levers and lift up to remove.

Replace Drawer
Pull drawer guides all the way out and lay drawer box on glides. Gently close the drawer box until the guides snap into place.

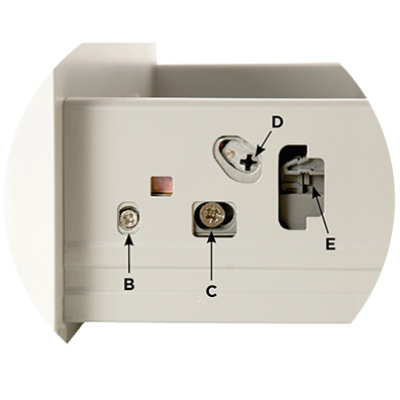

Satino Drawer Adjustments (optional)

A. Remove Plastic Cover to Expose Adjustment Area

B. Left & Right Drawer Adjustments
Turn the screw (right-hand drawer side only) to make horizontal (left or right) adjustments to drawer face.

C. Up & Down Drawer Adjustments
Turn screw to raise or lower the drawer face.

D. Remove Drawer Face
Turn screws on each drawer side to release the drawer face from the drawer box.

E. Remove Drawer
Pull the drawer box forward while lifting both tabs (one on each side) to disengage the drawer box from guides.

Replace Drawer
Pull drawer guides all the way out and lay drawer box on glides. Gently close the drawer box until the guides snap into place.
