CABINET ADJUSTMENTS

The finishing touch.



A successful and beautiful installation requires proper door and drawer adjustments. These fine-tuning adjustments are the responsibility of the installer and all adjustments can be performed with a Phillips head screwdriver. Drawer fronts are adjustable by different methods, depending on the drawer system.
*Be sure to adjust the doors BEFORE drilling for handles or knobs.


DOOR ADJUSTMENTS

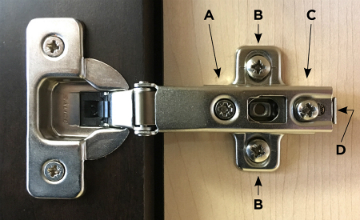

A. Left & Right Door Adjustment:
Turn this screw for horizontal (left or right) door adjustments. Use this to align the reveals, or gaps, between adjacent doors and drawers. Proper door alignment usually requires adjusting upper and lower hinges (and middle hinge on tall cabinets).
Video: Left & Right Door Adjustment

B. Up & Down Door Adjustment:
Loosen both screws on each door hinge to allow for vertical door adjustment. Support the weight of the door with one hand while lifting or lowering the door into alignment with the other.  Tighten all screws when adjustment is complete.
Video: Up & Down Door Adjustment

C. In & Out Door Adjustment:
Loosen this screw to manually move the door in or out.  Use this to adjust the door so it evenly contacts the cabinet box at top and bottom. Tighten screw when adjustment is complete.
Video: In &  Out Door Adjustment

D. Remove & Replace Door:
Easily remove the door by pressing quick release mechanism/button  located at the back of the hinge. To replace the door, align the hinge over the hinge plate and press firmly until the locks back into place.
Note: This process does not interfere with hinge adjustments.
Video: Remove & Replace Hinge/Door

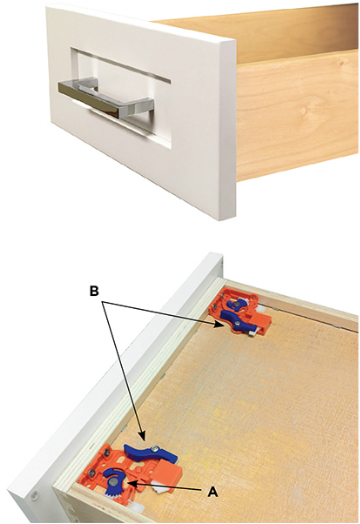

ACCESS WOOD DRAWER (standard drawer style)

A. Adjust Drawer Face Alignment:
Rotate adjustment tabs to raise or lower drawer box slightly on each end.

B. Remove Drawer:
Pull drawer completely open. On drawer box bottom, squeeze release levers and lift up to remove.

Replace Drawer:
1. Pull drawer guides all the way out and lay drawer box on glides.
2. Gently close drawer box until guides ‘snap’ into place.
Note: It may require pulling the actual glides forward to complete the 'snap' in connection.

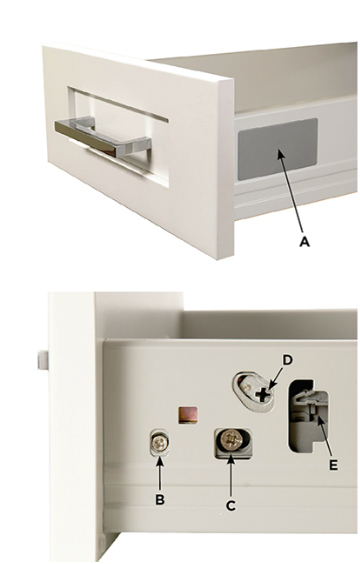

SATINO DRAWER (optional drawer style)

A. Remove Plastic Cover to Expose Adjustment Area:

B. Left & Right Drawer Adjustment:
Turn screw (right-hand drawer side only), to make horizontal (left or right) adjustments to drawer face.

C. Up & Down Drawer Adjustment:
Turn screw to raise/lower the drawer face.

D. Remove Drawer Face:
Turn screw on each drawer side to release the drawer face from the drawer box.

E. Remove Drawer:
Pull drawer box forward while lifting both tabs (1 on each side) to disengage the drawer box from guides.

Replace Drawer:
1. Pull drawer guides all the way out and lay drawer box on glides.
2. Gently close drawer box until guides ‘snap’ into place.
Note: It may require pulling the actual glides forward to complete the snap in connection.


Download: Latitude Cabinet Adjustments (PDF)
